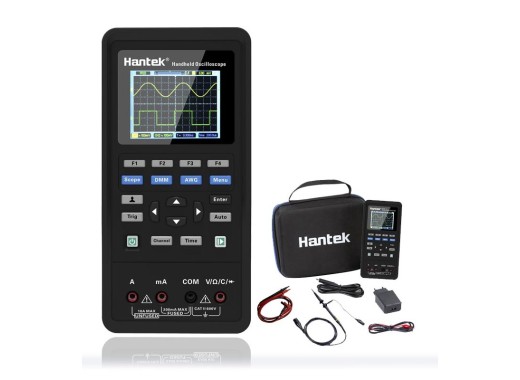

Hantek 2C42 handheld oscilloscope
Details
The Hantek 2000 series handheld oscilloscopes are inexpensive and versatile at the same time. For example, the oscilloscopes are available in bandwidths up to 40 MHz and 70 MHz and can be equipped with a multimeter and function generator. As a result, the functionality of these meters is very extensive.
The oscilloscope runs on a built-in Lithium-Ion battery. This battery can be charged via the supplied adapter with usb-c connector. This usb-c connector is also suitable for data transfer with a PC or telephone.
Model overview
Below is an overview of the models from the Hantek 2000 handheld oscilloscopes series. The main difference between the models is the bandwidth and the presence of a function generator.
| Model | 2C42 | 2D42 | 2C72 | 2D72 |
|---|---|---|---|---|
| Bandwidth | 40 MHz | 40 MHz | 70 MHz | 70 MHz |
| Function generator | No |
Yes |
No |
Yes |
Specifications
| Oscilloscope function | |
| Bandwidth | 40 / 70 MHz |
| channels | 2 |
| Sample rate | 250 MSa/s (single channel), 125 MSa/s (double channel) |
| A/D converter | 8 bit |
| Vertical scale | 10 mV/div - 10V/div |
| Function generator | |
| Frequency | Sinus(1Hz - 25MHz), Block(1Hz - 10 MHz), Ramp(1Hz - 1 MHz), EXP(1Hz - 5 MHz) |
| Sampling | 250 MSa/s |
| Output impedance | 50 Ω |
| Multimeter function | |
| Max resolution | 4000 counts |
| Maximum input voltage | AC 600V, DC 600V |
| Maximum input current | AC 10A, DC 10A |
| Input impedance | 10 M Ω |
| Other specifications | |
| Screen | 2,8 Inch TFT (320x240) |
| Battery | 2 x 2600mA |
Accessories
The Hantek 2000 handheld oscilloscopes are delivered including:
- 1 Probe
- 1 Probe with crocodile clamps (D version comes with 2 probes)
- USB adapter with cable
- 1 multimeter probe
Plus en minpunten
- Many functionalities
- Cost-effective
Downloads
| Hantek 2000 series quick guide |  (527.09 KB) | Download |
| Hantek 2000 series user manual | (862.62 KB) | Download |
| Hantek 2000 series Windows software |  (14.54 MB) | Download |
