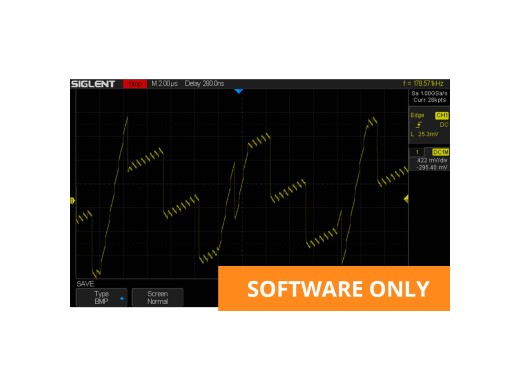

Siglent SAG1021I SDS1000X-E software
Details
This function generator can be used with the 4-channel SDS1000X-E scopes and all of the SDS2000X-E, SDS5000X or SDS6000A scopes.
It is connected by USB and is able to generate 25MHz signals with 16K points on 1 channel.
Attention! This function generator requires specific software to work. There are multiple versions of this software available: one for the 1000X-E, 2000X-E, 5000X and one for the 6000A scopes. With the drop-down at the top of this page you are able to select the right software. Be aware that you need to purchase the hardware plus the required software.
Specifications
| Channels | 1 (isolated) |
| Output frequency | 25 MHz |
| Sampling rate | 125 MSa/s |
| Frequency resolution | 1 µHz |
| Frequency precision | ± 50 ppm |
| Vertical resolution | 14 bits |
| Amplitude range | -1.5 V ~ +1.5V (50Ω)-3 V ~ +3 V (High-Z) |
| Waveform types | Sine, Square, Ramp, pulse, Noise, DC and 45 built-in waveforms |
| Output impedance | 50Ω±2% |
| Protection | Over-Voltage Protection, Current-Limiting Protection |
