Techmize TH2822E handheld LCR meter
Details

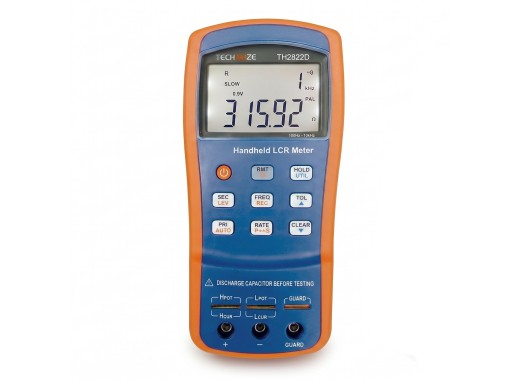

The Techmize TH2822E is a handheld LCR meter from the TH2822 series. This series of LCR meters is known for being a capable and portable instrument at an affordable price. It measures L, C, R, Z, DCR, D, Q, θ, and ESR with a 40,000-count primary readout and a D/Q resolution of 0.0001, showing primary and secondary parameters simultaneously on a backlit LCD. Test frequencies are selectable at 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz, with a selectable 0.3, 0.6, or 1Vrms test signal and a high basic accuracy of 0.10%, covering demanding inductor, capacitor, and resistor characterisation from production lines to higher-frequency work in R&D and educational labs.
As the top model in the series, the TH2822E combines DCR (DC resistance) measurement, a selectable test-signal level, and 100kHz coverage for the most demanding component characterisation. The fast 250ms measurement time, automatic ranging, and 4-tolerance comparator (1/5/10/20%) make the meter well-suited for quick and easy component testing. Convenience features such as data hold and Min / Max / Average recording help with logging and sorting components during repetitive measurements. Finally, the LCR meter offers a Mini-USB interface with SCPI command support and works with the free FastAccess PC software for remote control and data export. For SMD work, optional 4-terminal Kelvin test tweezers (TH26009C and TH26029C) are available as an optional addition. Contact us for more information.
Techmize products are manufactured by Tonghui, which is the company behind well-known high-quality products in the test & measurement industry. With Techmize, they have introduced their own-branded European product line with local service & support, offering the same level of quality at a fair price level.
Model overview
| Model | TH2822A | TH2822C | TH2822D | TH2822E |
|---|---|---|---|---|
| Test frequency | 100 Hz / 120 Hz / 1 kHz / 10 kHz | 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz | 100 Hz / 120 Hz / 1 kHz / 10 kHz | 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz |
| Test signal level | 0.6 Vrms | 0.6 Vrms | 0.3 / 0.6 / 1 Vrms | 0.3 / 0.6 / 1 Vrms |
| Basic accuracy | 0.25% | 0.25% | 0.10% | 0.10% |
| DCR measurement | No |
No |
Yes |
Yes |
| Price |
Specifications
| Test parameters | |||||||
| |||||||
| Output impedance | 100 Ω | ||||||
| Test speed | 4 measurements/s (Fast mode) 1.5 measurements/s (Slow mode) 3 measurements/s (DCR) | ||||||
| Ranging | Auto | ||||||
| Display | LCD with backlight | ||||||
| Display resolution | 40,000 counts, 4¾ digits | ||||||
| Interface | Mini-USB | ||||||
| Other functions | Data hold, Min / Max / Average recording, percentage display, auto power-off, low-voltage indicator | ||||||
| Battery | 8.4 V Ni-MH rechargeable | ||||||
| Dimensions | 190 x 90 x 41 mm | ||||||
| Weight | 350 g | ||||||
Accessories
The TH2822E comes by default with:
- Mini-USB cable
- Test lead set (banana to alligator clip)
- 4 terminal Kelvin test cable
- SMD Kelvin test cable
- 8.4V Ni-MH rechargeable battery
- 12V AC adapter
Pros and cons
- Basic accuracy of 0,10%
Downloads
| TH2822 series datasheet |  (888.26 KB) | Download |
| TH2822DE user manual | (1.1 MB) | Download |
