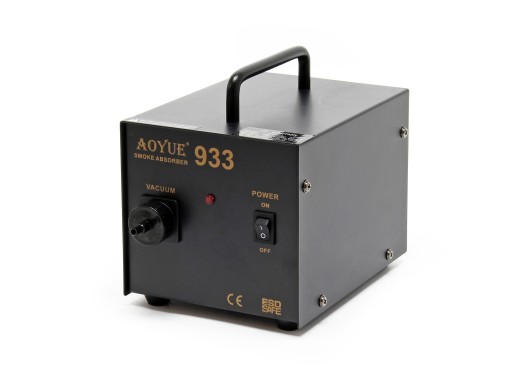

AOYUE 933 soldeerdampafzuiging
Details
De AOYUE 933 is een voordelig apparaat voor het afzuigen van soldeerdamp en rook, waardoor het mogelijk is om te solderen zonder deze (schadelijke) stoffen in te ademen. De Aoyue 933 dient aangesloten te worden aan een afzuigbuis die aan de soldeerbout gekoppeld kan worden of al is, zoals de JBC F3435, de JBC F3449 of de AOYUE 968A+ soldeerbout. Zwevende vuil resten worden opgevangen in twee uitwasbare filters. Dit product kan natuurlijk worden gebruikt in combinatie met AOYUE soldeerstationen en ook (de)soldeerstationen en afzuigbuizenvan andere merken. Dit product is een zeer voordelig alternatief voor de oplossingen van aanzienlijk duurder geprijsde A-merken.
Specificaties
Vermogen | 16 Watt |
Pomp type | Membraanpomp (Diaphragm pump) |
Pomp capaciteit | 15l per minuut |
Vacuüm druk | 600 mm Hg |
Afmeting | 133 x 178 x 123 mm |
Gewicht | 1.8 kg |
Accessoires
Dit product wordt geleverd met:
- Netsnoer
- Reserve filters
- Handleiding
Vergelijkbare producten
Nieuwste reviews
Review door Rene Cornelisse
Geplaatst op 25-02-2024
Review door E Paashuis
Geplaatst op 04-01-2022
Ik gebruik deze afzuiging als volgt: aan de JBC bout zit een siliconenslang, vlak boven de punt. Die is aangesloten op de afzuiger boven op het soldeer'kantoor' via een slang van een ongeveer 1 meter 50. Met een voetschakelaar zet ik de afzuiging aan zolang als nodig is. Perfect! Nooit meer damp inademen. Geen last van lawaai.
Review door Darko Markovic
Geplaatst op 09-09-2019
Well it is what it is. Still it has good potential.
It is very easy to mod and that will reduce lot of the sound it produces.
Do it on your own risk. I took a cover off and used anti-vibration mat on inside surfaces. Made sure to glue it just on the places that have clearance for it. This added mas muffled the cover totally. Now you can place it on the sponge an that will decouple it from the table. This to things will reduce sound output a lot. This will make it from pretty irritant to mildly irritant things.
Now for this amount of money and for added materials you are getting OK-ish solution for fume extraction.
Suction power? Well it is strong enough but it depends on the User as well. If you are person that uses to much tin and uses to high iron temperature suction power might not be enough. Specially if you are using tin with lot of resin/flux in it. Specially if you do not take care that suction pipe is above the iron at all times. On other hand if you use newer formula no clean tin and you are using needed temperature of the iron and not like 50 degree Celsius more then needed plus you place the suction tube proper this solution will be enough.
This pump have two carbon filters. One on the intake and one on the exhaust. I have not noticed any smoke escaping the pump. I would not check for the smell on the exhaust either.
Someone somewhere stated that he forgot to remove transporting screw and that made it very loud. I do not get it how is that possible. There is a label across the 230V port stating to remove the transporting screw before operating this pump. Even if you would ruin it whole pump assembly costs like 27 Euro. Or just get the new one.
For the price and after mods this is 4,5 star device. As it comes it is just an average working thing. Not meant for the prolong exposure. For that it is to loud,
It is very easy to mod and that will reduce lot of the sound it produces.
Do it on your own risk. I took a cover off and used anti-vibration mat on inside surfaces. Made sure to glue it just on the places that have clearance for it. This added mas muffled the cover totally. Now you can place it on the sponge an that will decouple it from the table. This to things will reduce sound output a lot. This will make it from pretty irritant to mildly irritant things.
Now for this amount of money and for added materials you are getting OK-ish solution for fume extraction.
Suction power? Well it is strong enough but it depends on the User as well. If you are person that uses to much tin and uses to high iron temperature suction power might not be enough. Specially if you are using tin with lot of resin/flux in it. Specially if you do not take care that suction pipe is above the iron at all times. On other hand if you use newer formula no clean tin and you are using needed temperature of the iron and not like 50 degree Celsius more then needed plus you place the suction tube proper this solution will be enough.
This pump have two carbon filters. One on the intake and one on the exhaust. I have not noticed any smoke escaping the pump. I would not check for the smell on the exhaust either.
Someone somewhere stated that he forgot to remove transporting screw and that made it very loud. I do not get it how is that possible. There is a label across the 230V port stating to remove the transporting screw before operating this pump. Even if you would ruin it whole pump assembly costs like 27 Euro. Or just get the new one.
For the price and after mods this is 4,5 star device. As it comes it is just an average working thing. Not meant for the prolong exposure. For that it is to loud,
Review door Remco de Wit
Geplaatst op 20-11-2017
Het is een simpele vacuumpomp waar je koolstoffilters in kan plaatsen. Plaatsing gaat gemakkelijk via het af te schroeven kapje waar de slang aan zit. Hij maakt wel redelijk wat lawaai en de zuigkracht aan het einde van de slang is niet al te sterk. De meeste rook zuig hij wel weg, maar er ontsnapt ook nog wel rook langs de zuigmond.
Qua prijs/prestatie is er echter niets om over te klagen.
Duurzaamheid kan ik echter nog geen oordeel over vellen.
Qua prijs/prestatie is er echter niets om over te klagen.
Duurzaamheid kan ik echter nog geen oordeel over vellen.
Review door Niels Puts
Geplaatst op 18-09-2014
Aoyue 933 is waar naar zijn geld: precies genoeg zuigkracht (ook zeker niet te veel). Grootste nadeel vind ik dat hij best veel geluid produceert en een beetje over de tafel gaat lopen (door de trillingen). Echter, als je bedenkt dat de 'echte merken' veelvouden vragen van het bedrag dat ik voor de Aoyue neerlegde, is het een goede koop geweest.
