295 Incl. 21% BTW: € 295,00 Excl. BTW: € 243,80
Voorraadinfo laden
  •
  • Gratis afhalen in Eindhoven
  • Afhalen bij meer dan 1.000 punten
Artikelnummer: ELE005979

Details

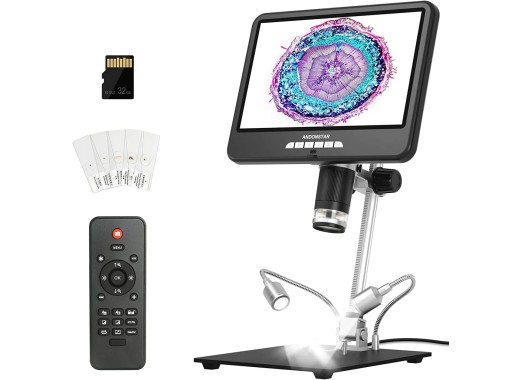

De digitale Andonstar AD207S-10PRO microscoop is geschikt voor diverse kleine toepassingen, vooral omdat deze microscoop wordt geleverd met een groot 10,1" display. Hij beschikt over een hoogwaardige HD-sensor met een framerate van 120 fps, waardoor het beeld helder en vloeiend is. De ingebouwde LED-spots zorgen voor een nog helderder en duidelijker beeld. Bovendien bevat de microscoop een UV-filter. Dit filter beschermt de lens en vermindert de reflectie en strooilicht. Dit UV-filter is zeer geschikt voor omgevingen met hoge temperaturen, zoals solderen en repareren. Daarnaast heeft de AD207S-10PRO een verlengde hoogte van 26 cm, waardoor er meer vrijheid is tijdens het solderen.

Verder is de microscoop te bedienen met de knoppen aan de voorzijde, maar hij wordt ook geleverd met een draadloze afstandsbediening. Hierdoor is het mogelijk om eenvoudige handelingen uit te voeren zonder de microscoop aan te raken, zoals foto's maken en in- of uitzoomen. Dit garandeert de hoge nauwkeurigheid van de microscoop. Tot slot heeft de microscoop een eenvoudig te gebruiken scherpstelwiel en kan hij ook worden aangesloten op een extern beeldscherm via een HDMI-kabel.

Overzicht modellen

Model AD106S AD207S AD207S-10PRO ADSM302 AD409
Max. videoresolutie 1080P 2160P 2160P 1080P 2160P
Max. frame rate 30 fps 120 fps 120 fps 30 fps 120 fps
Vergrotingsfactor Tot 220x Tot 330x Tot 330x Tot 560x Tot 300x
Interfaces USB USB, HDMI USB, HDMI USB, HDMI, AV USB, HDMI, WiFi
Beeldscherm 4.3" 7.0" 10.1" 5.0" 10.1"
Lenskwaliteit goed goed goed goed uitstekend
Hoogte standaard 15,24 cm 15,24 cm
(25,4 cm met verlenging)
26,42 cm 26,42 cm 18,80 cm
Prijs 89 Incl. BTW: € 89,00 Excl. BTW: € 73,55 159 Incl. BTW: € 159,00 Excl. BTW: € 131,40 295 Incl. BTW: € 295,00 Excl. BTW: € 243,80 199.95 Incl. BTW: € 199,95 Excl. BTW: € 165,25 299 Incl. BTW: € 299,00 Excl. BTW: € 247,11

Specificaties

Type microscoopDigitale video & foto
FocusbereikMinimaal 2 cm
Video-uitgangMP4, 2880 × 2160P (UHD) 24fps; 1920 × 1080P (FHD) 60fps/30fps; 1280 × 720 (HD) 120fps
Fotoresolutie5600 x 4200 P (JPG)
OpslagTot 64G, Micro-SD kaart (NIET inbegrepen)
Lichtbron8 ingebouwde LED
2 LED-spots in standbase
Stroombron5V DC
Afmetingen standaard20 x 18 cm

Accessoires

De Andonstar AD207S-10PRO microscoop wordt geleverd met de volgende accessoires:

  • USB kabel
  • HDMI kabel
  • Afstandsbediening
  • UV-filter
  • Schakelkabel
  • Netsnoer

Plus en minpunten

  • Zeer geschikt voor solderen, reparatie en inspectie
  • Wordt geleverd met een afstandsbediening
  • Optische kwaliteit niet zo goed als AD409
  • Minimale scherpstelafstand is 2 cm in plaats van 5 cm (AD409)

Video's

Product video thumbnail
Product video thumbnail

Vergelijkbare producten

Andonstar AD409 microscoop
299 Incl. 21% BTW: € 299,00 Excl. BTW: € 247,11
Andonstar AD409 Pro microscoop
329 Incl. 21% BTW: € 329,00 Excl. BTW: € 271,90

Nieuwste reviews

Schrijf zelf een review

Lees alle reviews (1)

Review door Peter Baltus
Geplaatst op 10-12-2023
The microscope works quite well, with high resolution images on the large display, even when zooming in digitally. The mechanical construction is sturdy from thick metal, the focusing is smooth but has a little play. Adjusting height is not as smooth, I prefer to hold the microscope body from gliding down by its own weight - not a big deal but reduces the feel and experience of a quality instrument to 4 rather than 5 stars for me. There is a lot of room to work, more than enough for soldering etc. - a big difference from the cheap USB microscope I used thus far. The three adjustable light sources work quite well and make it easy to get a "3D feel" by creating limited shadows etc. THe remote control is much more convenient than the buttons below the screen and more useful than I expected. In addition to the listed contents, there are also some demo slides, plastic tweezers and a backlight icture that can be powered instead of the two flexible lights. As mentioned by others, large PCBs won't fit comfortably in the standard configuration, but my PCBs are typically small (10x15cm or less). There is a little bit of noise in the picture at lower light levels. Running from USB (also from a Linux computer - class compliant camera) works quite well, although the main display switches off in that case. All in all, I am very happy with the purchase, which was (as usual from eleshop) delivered perfectly on time well packaged.
